聚胺脂同步帶
聚氨酯同步帶XL
Types | Teeth | Width | Length | Types | Teeth | Width | Length |

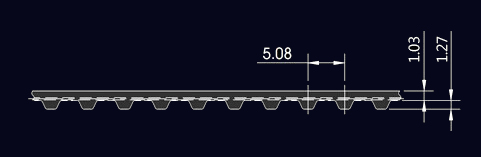

XL(Pitch=5.08mm) | XL(Pitch=5.08mm) | ||||||
XL-60 | 30 | 150 | 152.40 | XL-156 | 78 | 150 | 396.24 |
XL-64 | 32 | 150 | 162.56 | XL-160 | 80 | 150 | 406.40 |
XL-68 | 34 | 150 | 172.72 | XL-164 | 82 | 150 | 416.56 |
XL-70 | 35 | 150 | 177.80 | XL-166 | 83 | 150 | 421.64 |
xl-76 | 38 | 150 | 193.04 | XL-168 | 84 | 150 | 426.72 |
XL-80 | 40 | 150 | 203.20 | XL-170 | 85 | 150 | 431.80 |
XL-82 | 41 | 150 | 208.28 | XL-178 | 89 | 150 | 452.12 |
XL-84 | 42 | 150 | 208.28 | XL-180 | 90 | 150 | 457.20 |
XL-86 | 43 | 150 | 218.44 | XL-182 | 91 | 150 | 462.28 |
XL-90 | 45 | 150 | 228.60 | XL-184 | 92 | 150 | 467.36 |
XL-92 | 46 | 150 | 233.68 | XL-186 | 93 | 150 | 472.44 |
XL-94 | 47 | 150 | 238.76 | XL-188 | 94 | 150 | 477.52 |
XL-96 | 48 | 150 | 243.84 | XL-190 | 95 | 150 | 482.60 |
XL-98 | 49 | 150 | 248.92 | XL-194 | 97 | 150 | 492.76 |
XL-100 | 50 | 150 | 254.00 | XL-200 | 100 | 150 | 508.00 |
XL-102 | 51 | 150 | 259.08 | XL-202 | 101 | 150 | 513.08 |
XL-104 | 52 | 150 | 264.16 | XL-206 | 103 | 150 | 523.24 |
XL-108 | 54 | 150 | 274.32 | XL-210 | 105 | 150 | 533.40 |
XL-110 | 55 | 150 | 279.40 | XL-212 | 106 | 150 | 538.48 |
XL-120 | 60 | 150 | 304.80 | XL-214 | 107 | 150 | 543.56 |
XL-122 | 61 | 150 | 309.88 | XL-220 | 110 | 150 | 558.80 |
XL-124 | 62 | 150 | 314.96 | XL-228 | 114 | 150 | 579.12 |
XL-130 | 65 | 150 | 330.20 | XL-230 | 115 | 150 | 584.20 |
XL-134 | 67 | 150 | 340.36 | XL-232 | 116 | 150 | 589.28 |
XL-136 | 68 | 150 | 345.44 | XL-240 | 120 | 150 | 609.60 |
XL-40 | 70 | 150 | 355.60 | XL-250 | 125 | 150 | 635.00 |
XL-144 | 72 | 150 | 365.76 | XL-260 | 130 | 150 | 660.40 |
XL-146 | 73 | 150 | 370.84 | XL-270 | 135 | 150 | 685.80 |
XL-150 | 75 | 150 | 381.00 | XL-276 | 138 | 150 | 701.04 |
XL-280 | 140 | 150 | 711.20 | XL-396 | 198 | 150 | 1005.84 |
XL-286 | 143 | 150 | 726.44 | XL-412 | 206 | 150 | 1046.48 |
XL-290 | 145 | 150 | 736.60 | XL-414 | 207 | 150 | 1051.56 |
XL-294 | 147 | 150 | 746.76 | XL-424 | 212 | 150 | 1076.96 |
XL-300 | 150 | 150 | 762.00 | XL-450 | 225 | 150 | 1143.00 |
XL-310 | 155 | 150 | 787.40 | XL-480 | 240 | 150 | 1219.20 |
XL-314 | 157 | 150 | 797.56 | XL-490 | 245 | 150 | 1244.60 |
XL-320 | 160 | 150 | 812.80 | XL-566 | 283 | 150 | 1437.64 |
XL-330 | 165 | 150 | 838.20 | XL-630 | 315 | 150 | 1600.20 |
XL-356 | 178 | 150 | 904.24 | XL-750 | 375 | 150 | 1905.00 |
XL-380 | 190 | 150 | 965.20 | DXL-150 | 75 | 150 | 381.00 |
XL-390 | 195 | 150 | 990.60 | DXL-260 | 130 | 150 | 660.40 |
